Fixture clamps
Get a grip
Fixture clamps are versatile tools used in a variety of construction, woodworking and metalworking applications. They are designed to hold two or more objects securely, allowing precision work without the objects moving or shifting.
Cam Action fixture clamp with hexagonal washer
| General conditions | ||
| Quantity 5 - 10 | 5,00 % on the retail price of €7,20 | €6,84 |
| Quantity 11 - 49 | 10,00 % on the retail price of €7,20 | €6,48 |
| Quantity 50 - > | 15,00 % on the retail price of €7,20 | €6,12 |
Cam Action fixture clamp with square washer
| General conditions | ||
| Quantity 5 - 10 | 5,00 % on the retail price of €7,20 | €6,84 |
| Quantity 11 - 49 | 10,00 % on the retail price of €7,20 | €6,48 |
| Quantity 50 - > | 15,00 % on the retail price of €7,20 | €6,12 |

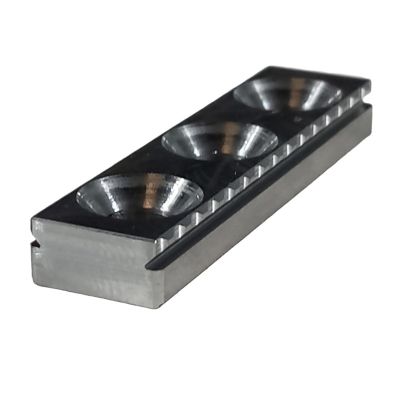

Locating rail
| General conditions | ||
| Quantity 5 - 10 | 5,00 % on the retail price of €16,00 | €15,20 |
| Quantity 11 - 49 | 10,00 % on the retail price of €16,00 | €14,40 |
| Quantity 50 - > | 15,00 % on the retail price of €16,00 | €13,60 |
Pull down clamp with knife edge
| General conditions | ||
| Quantity 5 - 10 | 5,00 % on the retail price of €26,20 | €24,89 |
| Quantity 11 - 49 | 10,00 % on the retail price of €26,20 | €23,58 |
| Quantity 50 - > | 15,00 % on the retail price of €26,20 | €22,27 |
Double wedge clamp
| General conditions | ||
| Quantity 2 - 5 | 5,00 % on the retail price of €38,40 | €36,48 |
| Quantity 5 - 10 | 10,00 % on the retail price of €38,40 | €34,56 |
| Quantity 15 - > | 15,00 % on the retail price of €38,40 | €32,64 |
Various types of fixture clamps
The fixture clamps vary in size, shape and strength depending on their specific use. A common type of clamp is the eccentric cam action clamp, which is often used on a fixture plate. Due to the small size, a very high part density can be achieved. This in turn results in increased productivity.
Another popular variant is the pull-down clamp with knife edge, which, as it were, bites into the material. This type of clamp allows aggressive machining while still achieving high part density.
Fixture clamp materials
Fixture clamps are made from a variety of materials, including tool steel, steel and sometimes brass for lighter applications. The tool steel elements undergo heat treatment, which makes them strong and wear-resistant.
Our low profile clamps are easy to use. With our CAD models and technical information, designing a fixture plate is very easy. If you are still unsure or are looking for a solution that is not yet available in our range, you can always contact us.
