Pull down clamp M6 with blunt edge
Article number 1014-SE-M6-SK
EAN-number
EAN-number 6151245128159
Edge
| ||||||||||||
€26,20
Excluding VAT
Item group price€22,27
In stock
Description

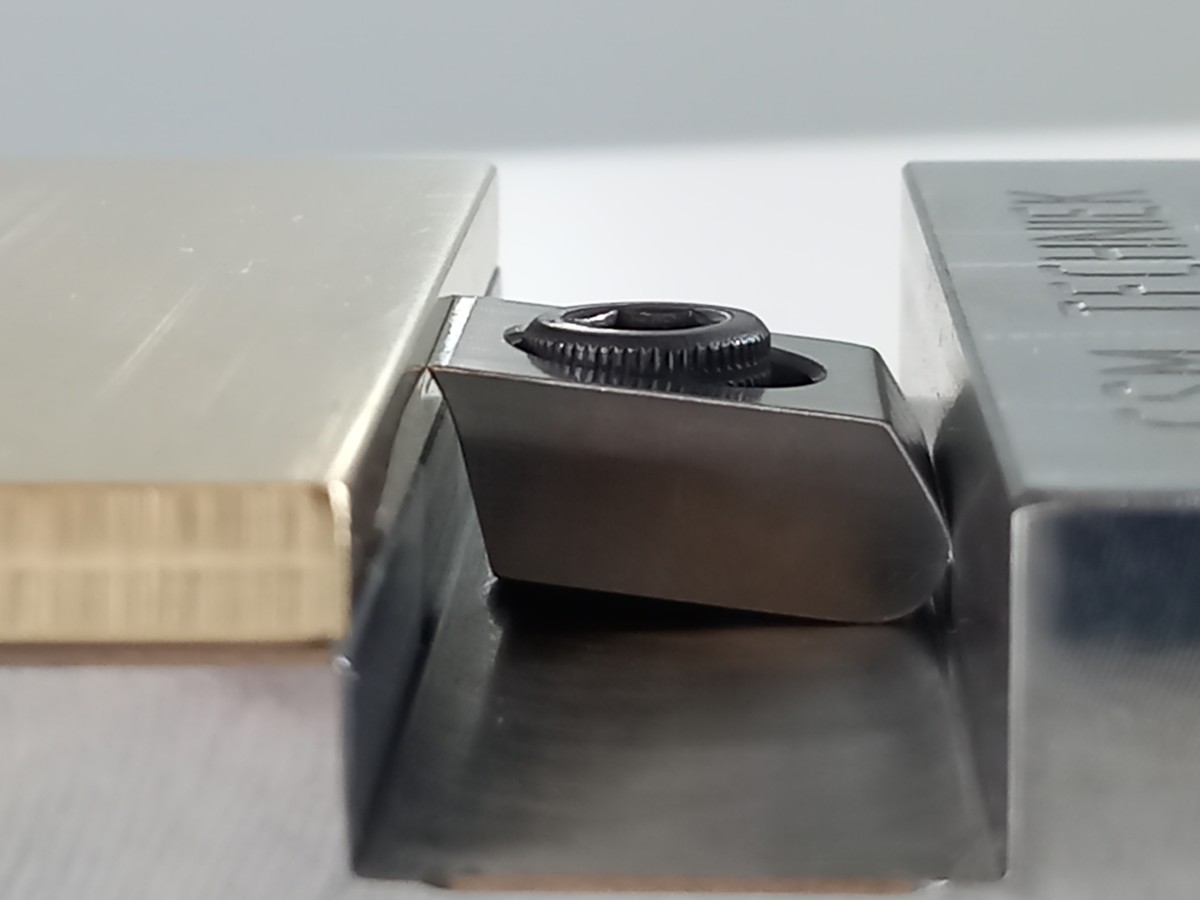

Blunt edge clamping element for easy and secure clamping of various workpieces. The fixture clamp is made of high-alloy tool steel, which is fully hardened to approximately 58 HRC after heat treatment. In addition to the achieved hardness, the material is also extremely wear-resistant and tough, which makes it ideal as a clamping element

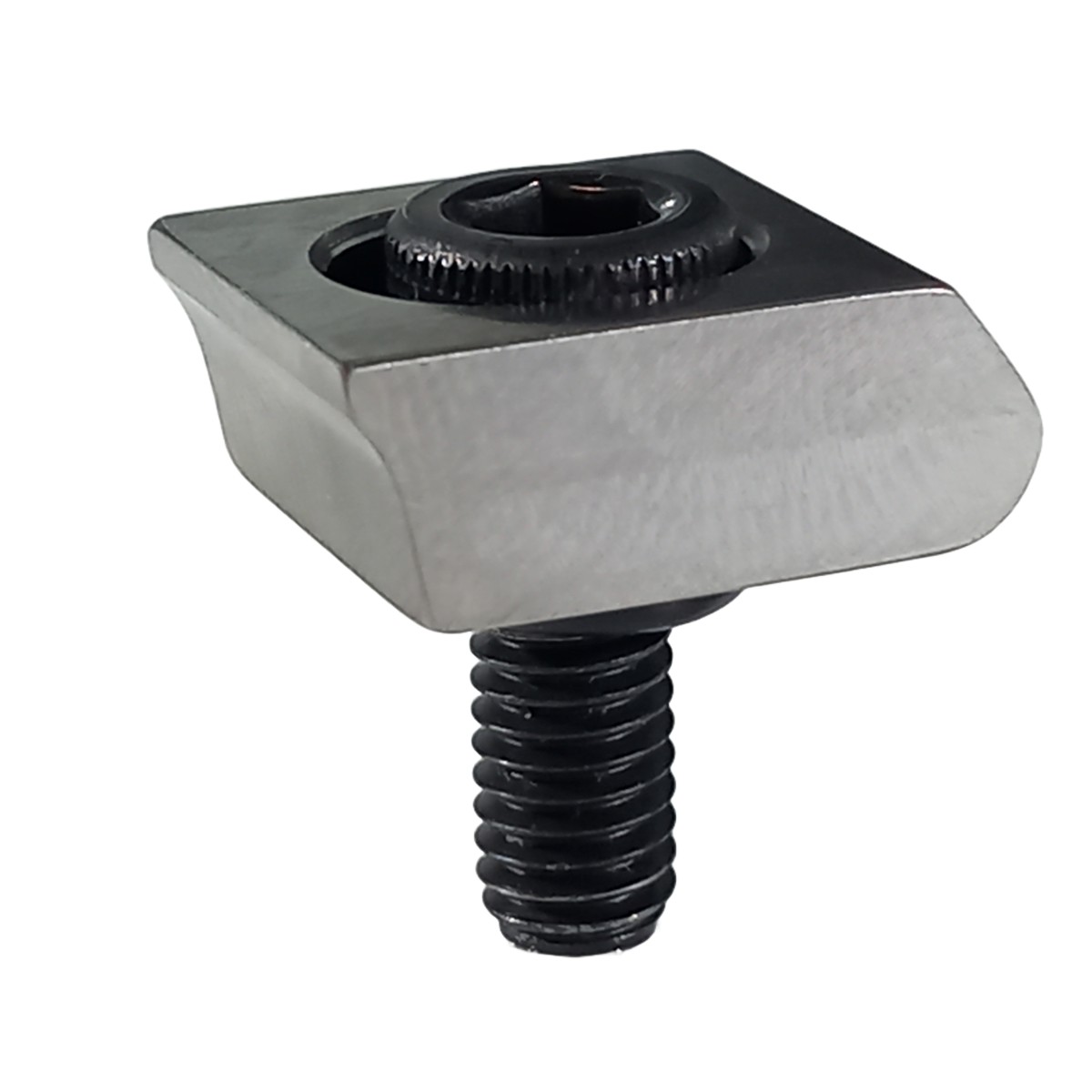

The fixture clamp is supplied with a steel hexagon socket screw DIN912 and an oil-resistant O-ring.
- Low profile
- Easy in use
- Compact, clamping of larger number of parts
- Cost efficient
Attachments
 |
Pull down clamp M6 with blunt edge 1014-SE-M6-SK |

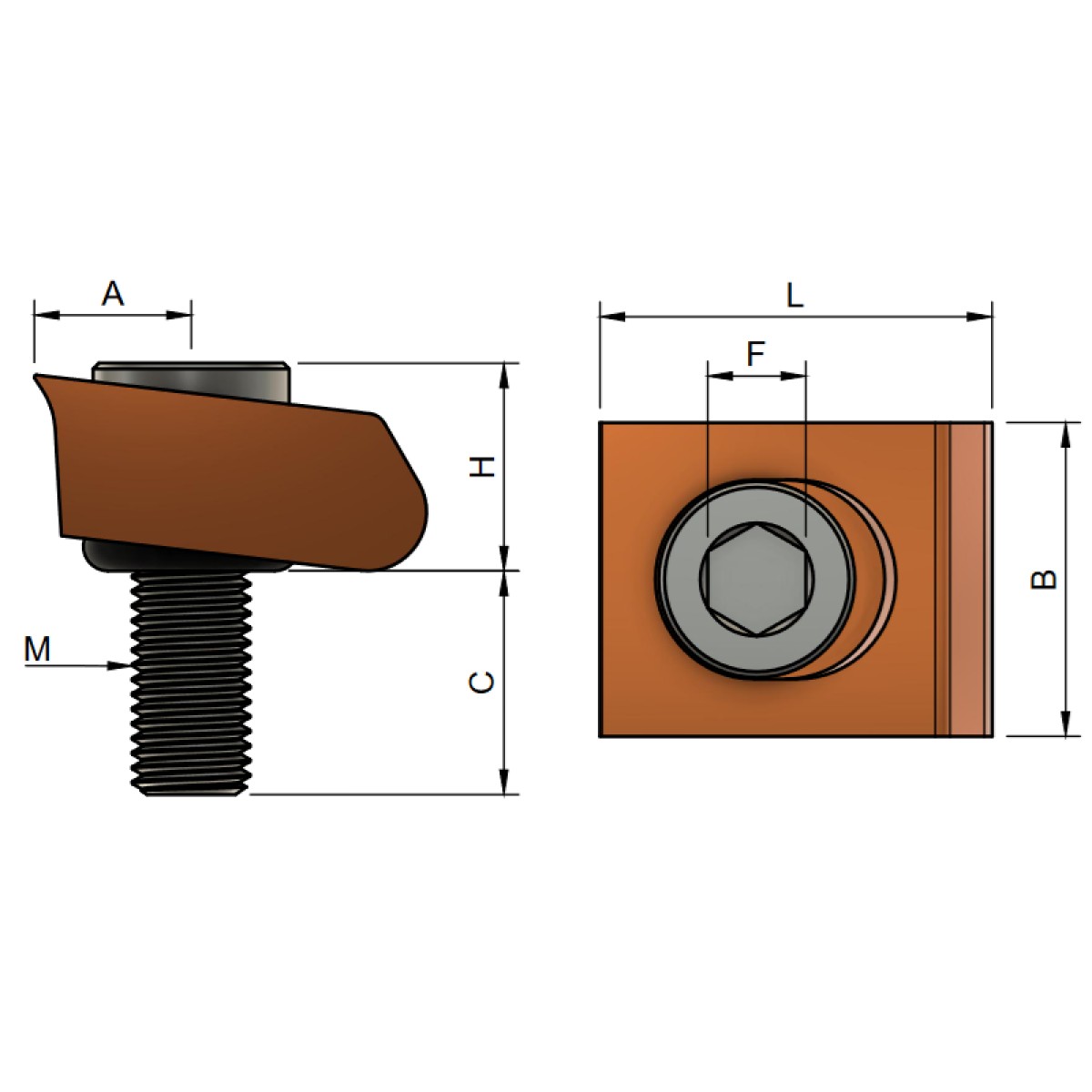

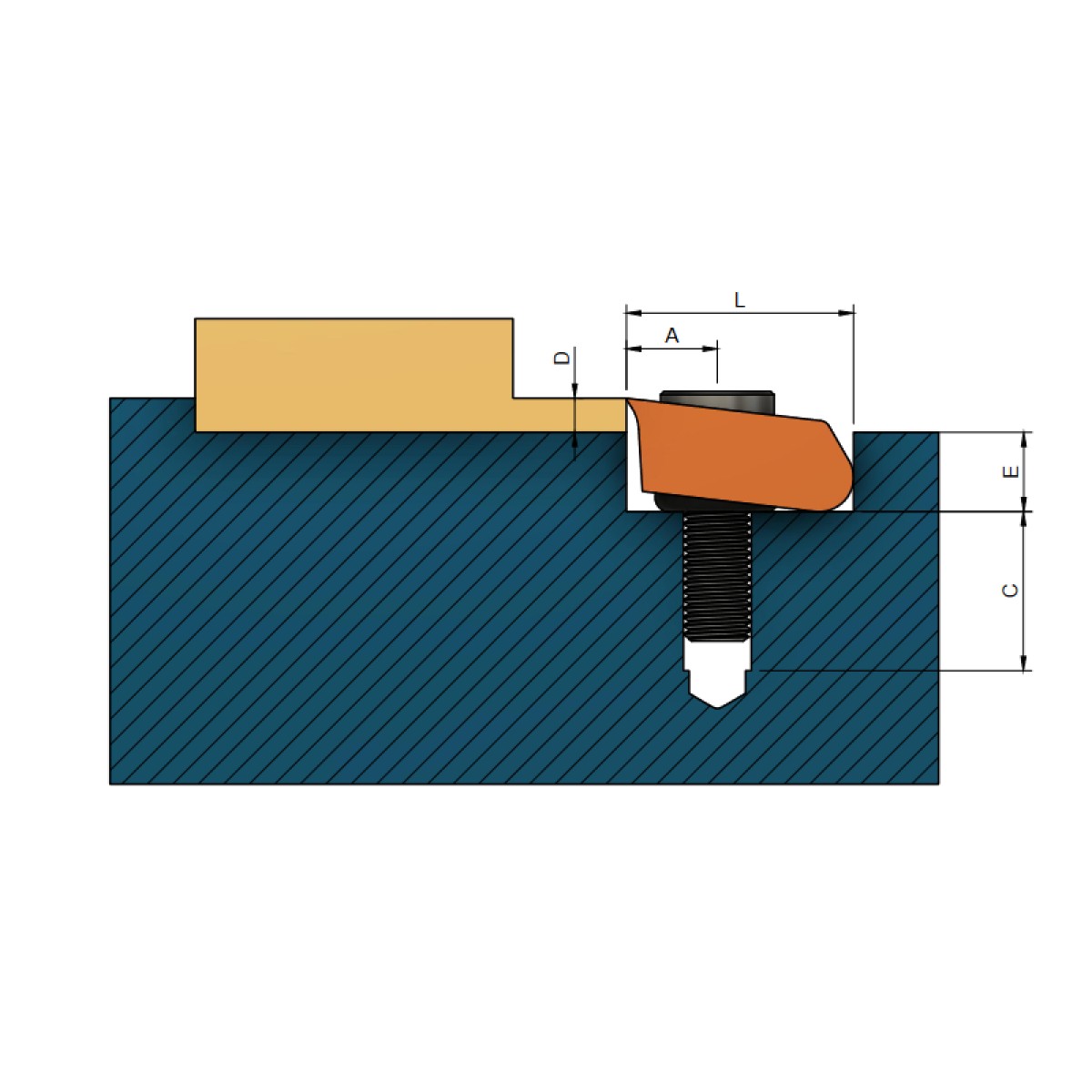

Specificaties
A dimension
8 mm
B width
16 mm
C threadlength
14 mm
D material height
3 mm
E slot depth
7 mm
F internal hexagon
5 mm
H height
10 mm
L slot width
20 mm
M thread
M6
Clamping force
16 kN
Maximum torque
22.5 Nm
Country of origin
The Netherlands
Order
Hexagon socket head cap screw M6x16
