Clamping mandrel for through hole 22 mm
Article number 1020-SE-22-M8-SD
EAN-number
EAN-number 6151245933968
€42,00
Excluding VAT
Item group price€42,00
In stock
Description

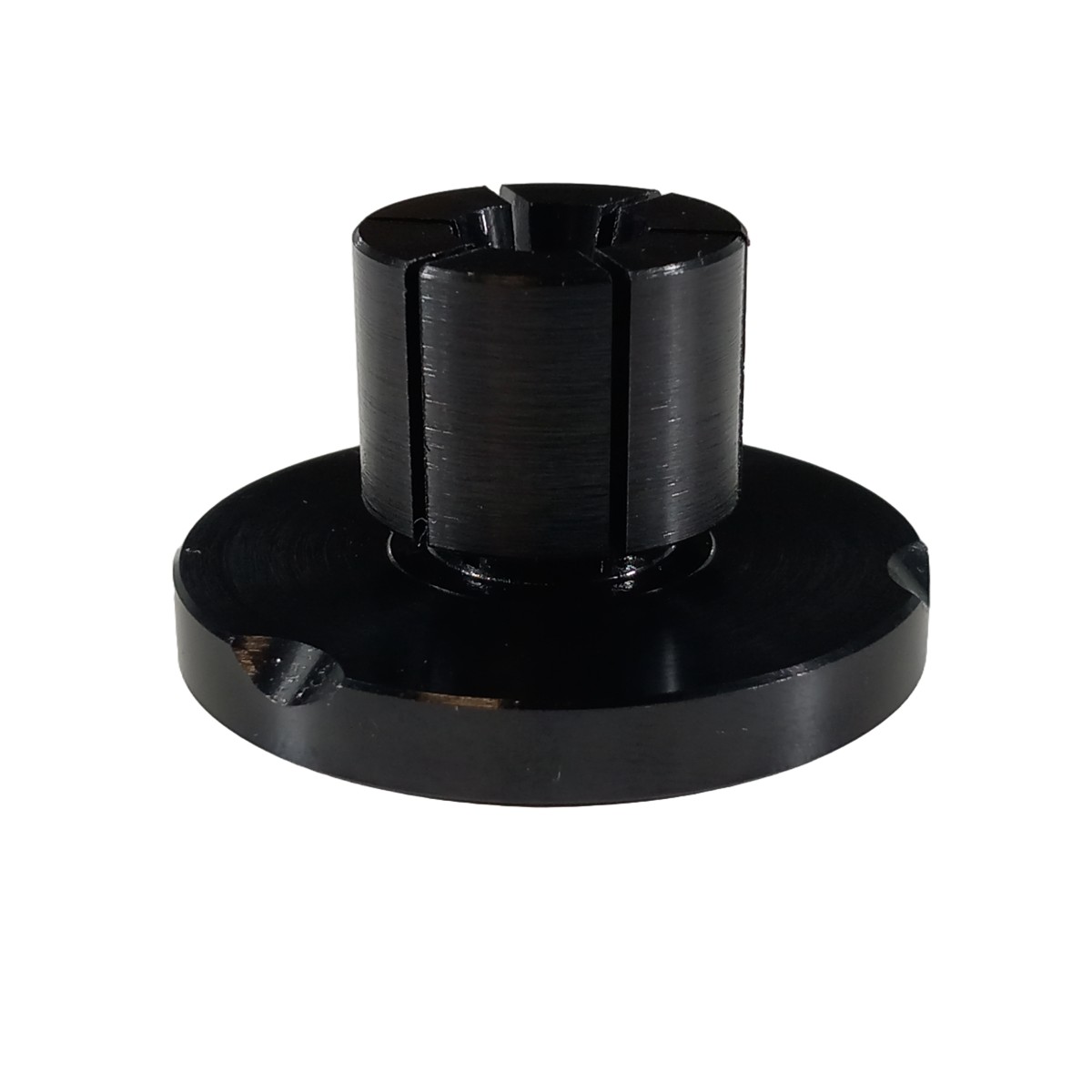

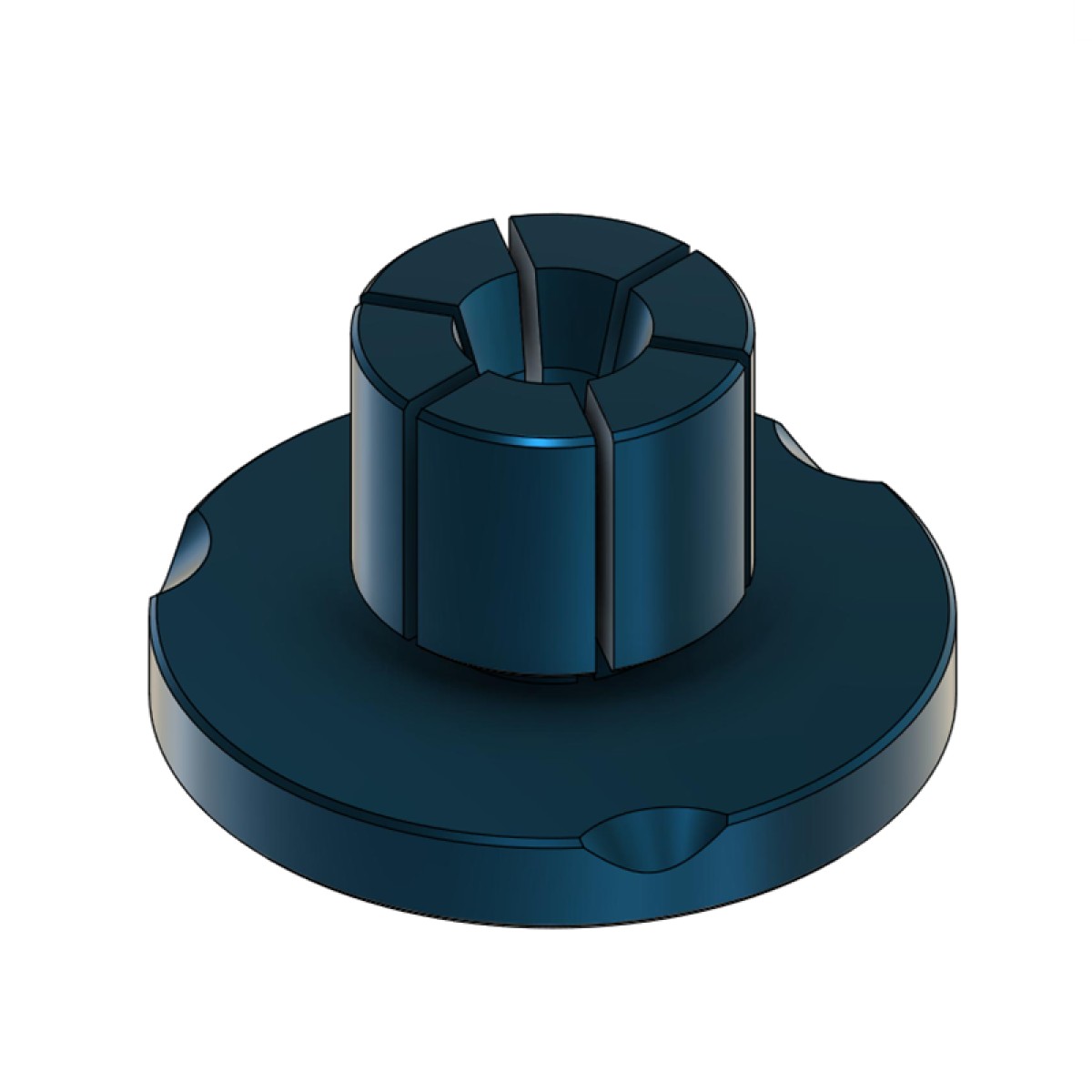

This easy-to-install clamping arbor for a through hole ensures solid clamping of the workpiece. High part density achievable and excellent repeatability.
Delivery of the clamping mandrel includes steel conical socket head screw.
- Low profile
- Easy to use
- Compact, more parts per load
- Cost efficient

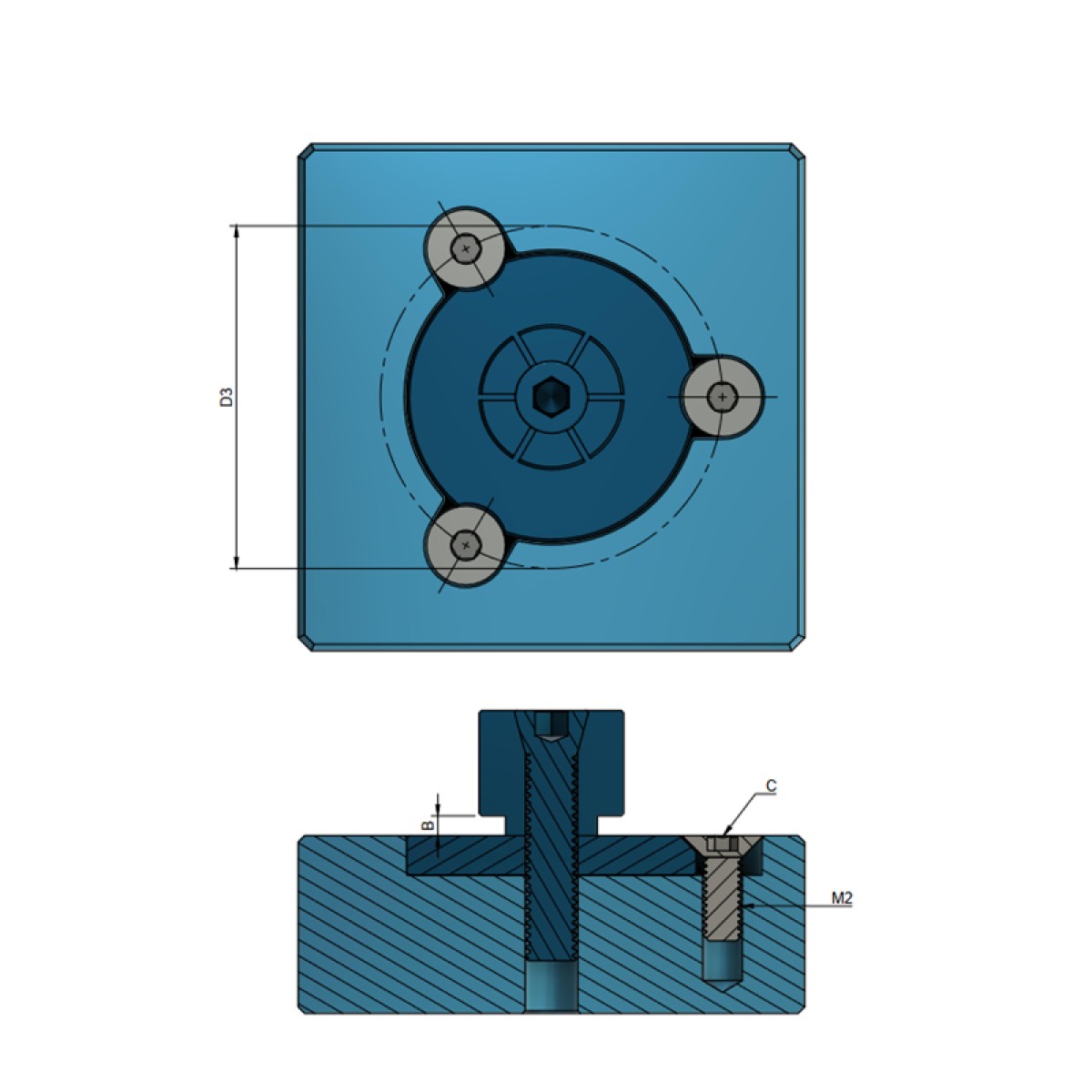

Specificaties
A dimension
6 mm
B width
3 mm
C type
DIN 7991
D head diameter
22 mmh6
D2 diameter
44 mmh6
D3 diameter
52 mm
H height
19 mm
L threadlength
13 mm
M thread
M8
M2 thread
M6
Order
Countersunk screws with hexagon socket M6x16
