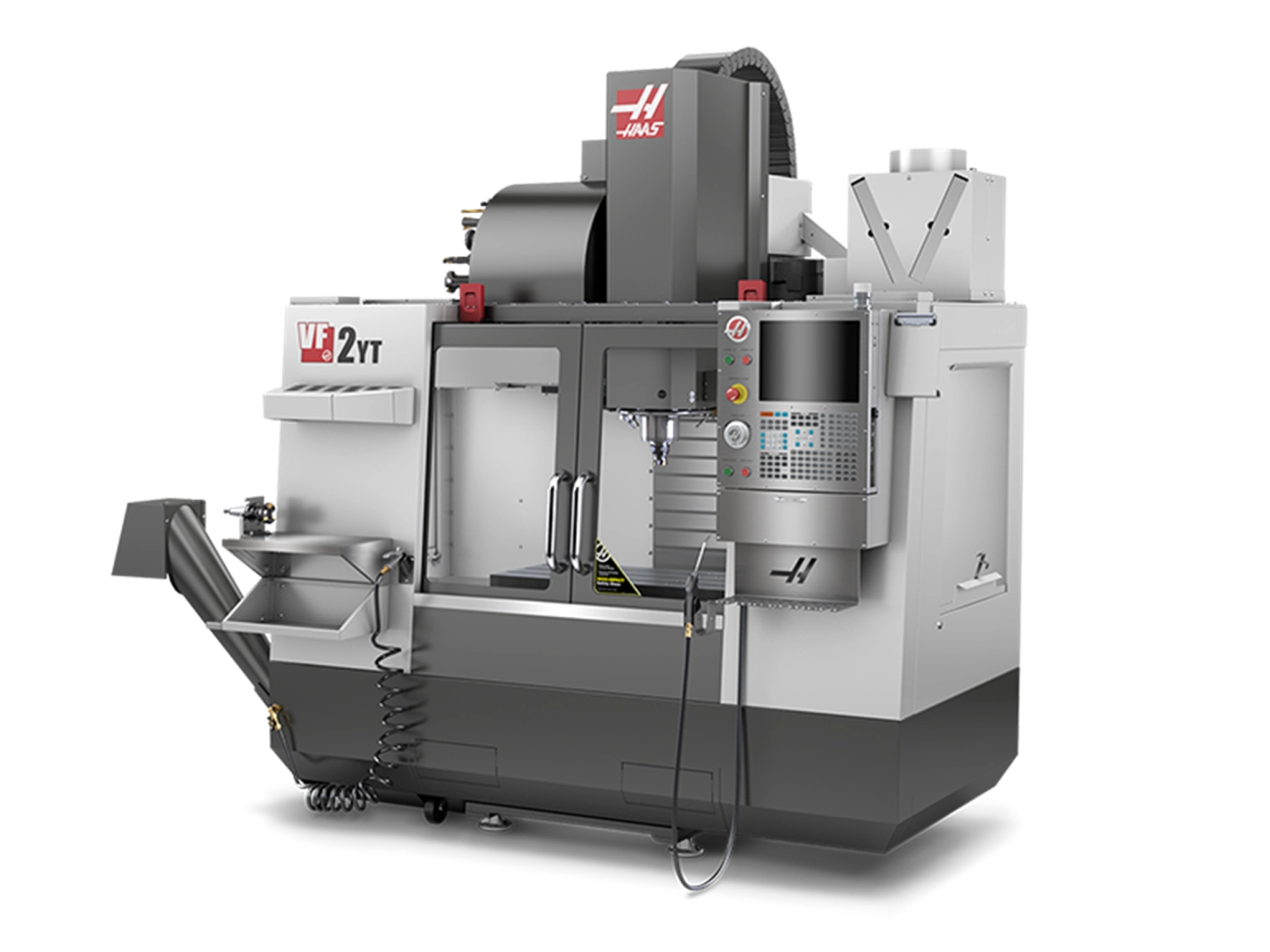

VF-2YT
40 taper vertical machining center
Travels
| X-as | 762 mm |
| Y-as | 508 mm |
| Z-as | 508 mm |
Spindle
| Max. Rating | 22.4 kW |
| Max. Speed | 10,000 rpm |
| Max. Torque | 122 Nm @ 2,000 rpm |
| Drive System | Inline Direct-Drive |
| Taper | CT40 |
Table
| Length | 914 mm |
| Width | 457 mm |
| Max weight on table | 1361 kg |
Tool changer
| Type | SMTC |
| Capacity | 30+1 |
