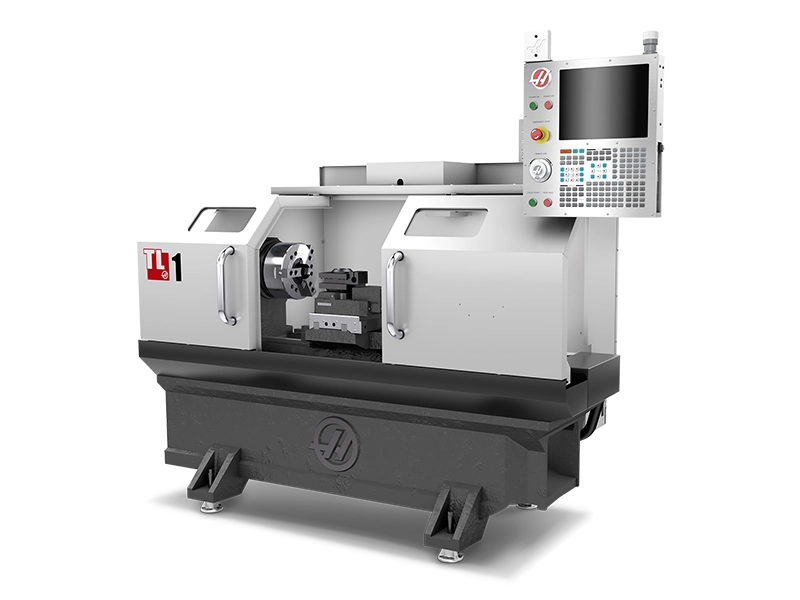

TL-1
Turning center
Travels
| X-as | 203 mm |
| Z-as | 762 mm |
Spindle
| Max. Rating | 7.5 kW |
| Max. Speed | 1.800 rpm |
| Max. Torque | 146 Nm @ 355 rpm |
| Spindle Nose | A2-5 |
Capacities
| Chuck Size | 203 mm |
| Max diameter | 406 mm |
| Bar capacity | 58 mm |
Turret
| Type | Tool post |
| X-as | 203 mm |
| Z-as | 762 mm |
| Max. Rating | 7.5 kW |
| Max. Speed | 1.800 rpm |
| Max. Torque | 146 Nm @ 355 rpm |
| Spindle Nose | A2-5 |
| Chuck Size | 203 mm |
| Max diameter | 406 mm |
| Bar capacity | 58 mm |
| Type | Tool post |
