Pull down clamp
Article number 1049-SE-M4-MK
EAN-number
EAN-number 6151248214293
€20,15
Excluded VAT
Item group price€20,15
Not in stock
Description

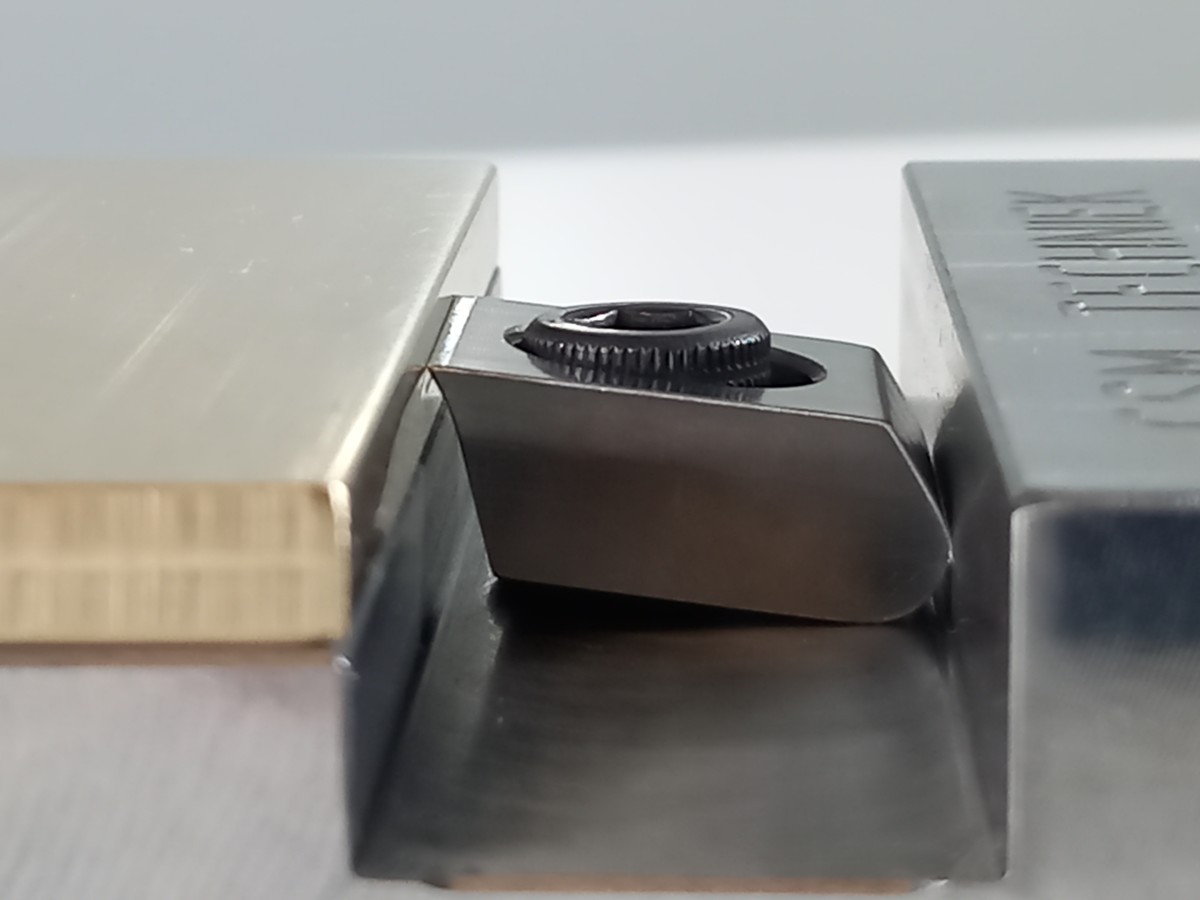

Knife edge clamping element for easy and secure clamping of various workpieces. The fixture clamp is made of high-alloy tool steel, which is fully hardened to approximately 58 HRC after heat treatment. In addition to the achieved hardness, the material is also extremely wear-resistant and tough, which makes it ideal as a clamping element

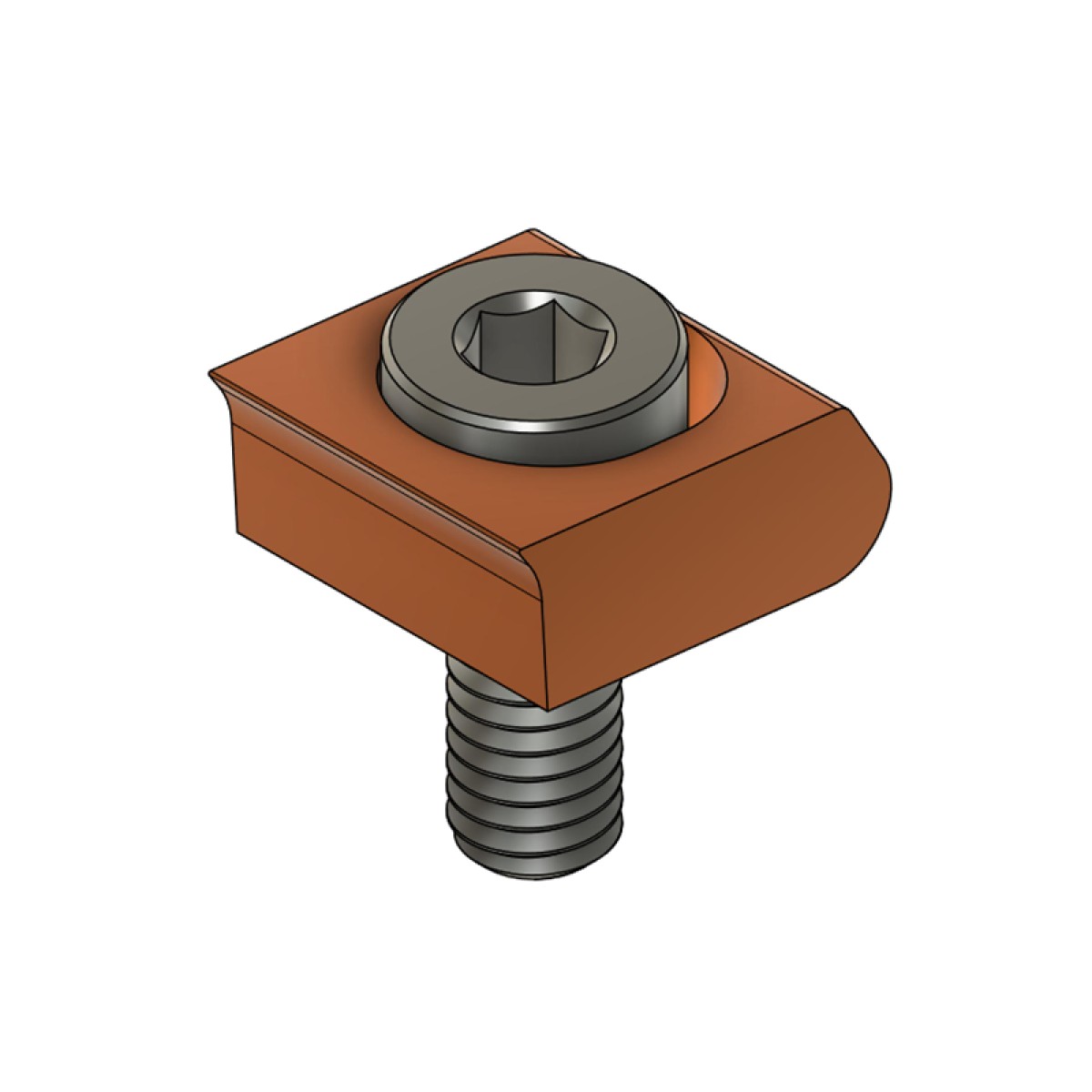

The fixture clamp is supplied with a steel hexagon socket screw DIN912 and an oil-resistant O-ring.
- Low profile
- Easy in use
- Compact, clamping of larger number of parts
- Cost efficient
Attachments
 |
1049-SE-M4-MK |

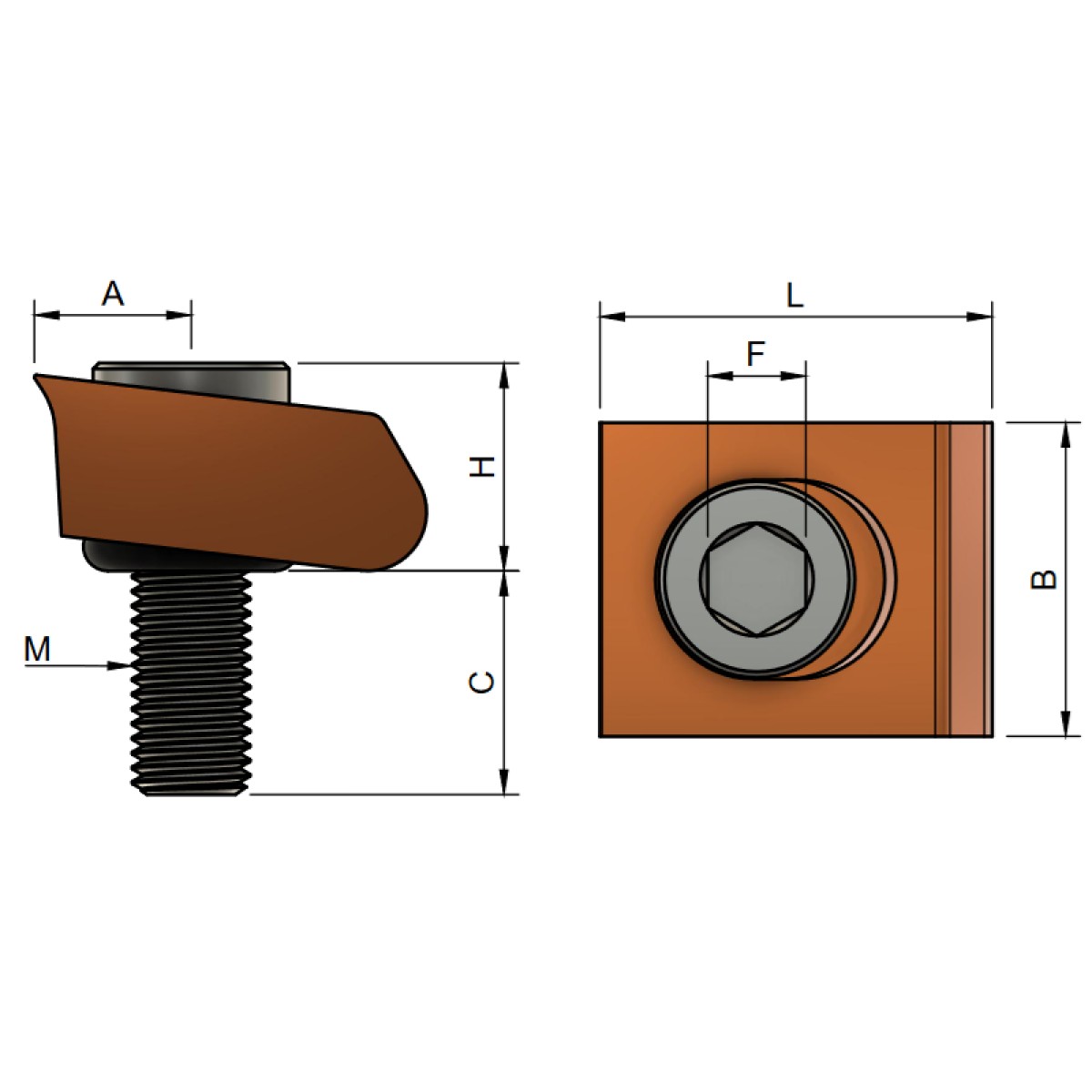

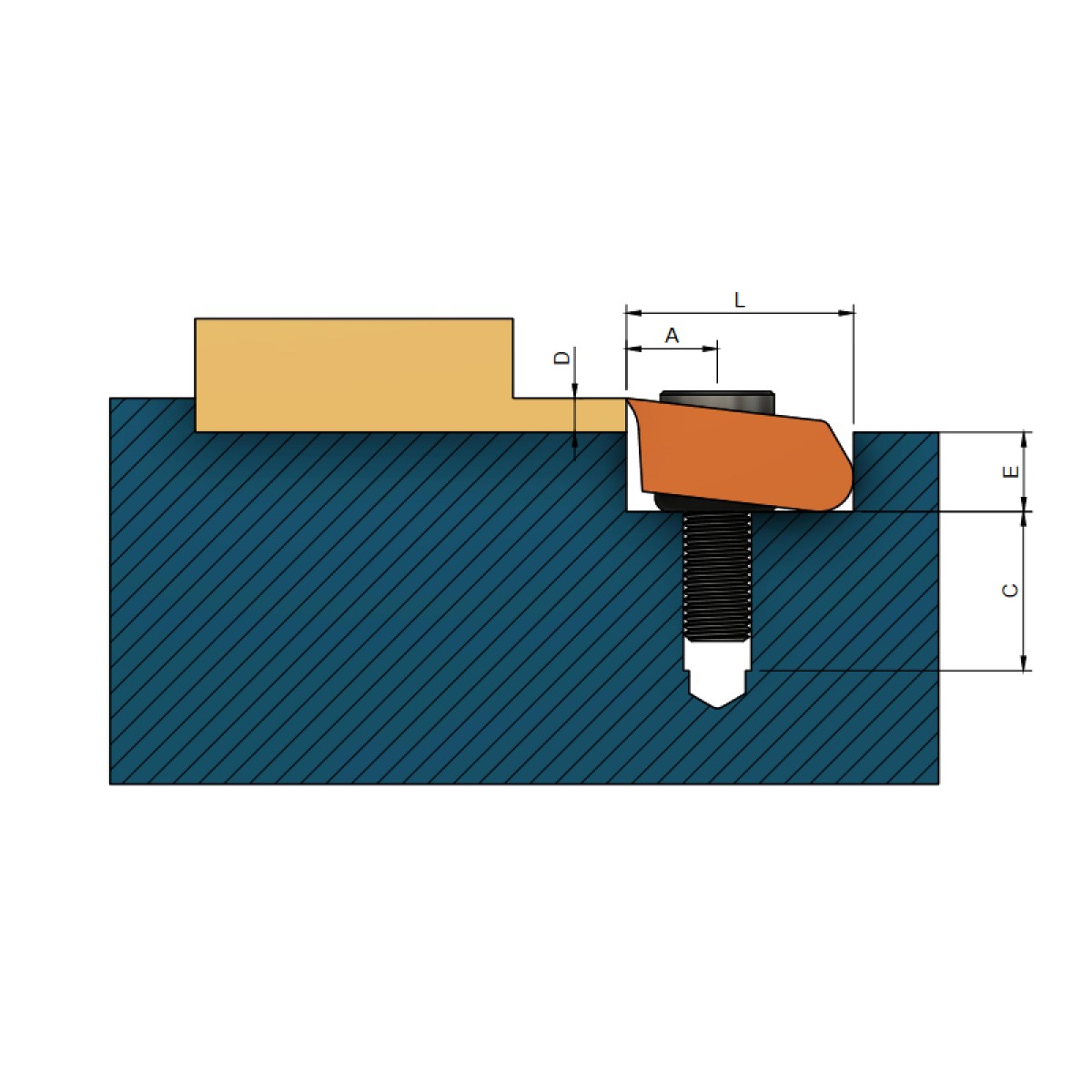

Specificaties
A dimension
5.5 mm
B width
10 mm
C threadlength
14 mm
D material height
2.0 mm
E slot depth
4 mm
F internal hexagon
3 mm
H height
10 mm
L slot width
12 mm
M thread
M4
Clamping force
6 kN
Maximum torque
4.5 Nm
Country of origin
The Netherlands
